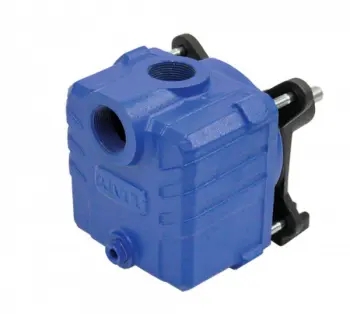

AMT® 2850-99 Self-Priming Centrifugal Pump with Bearing Pedestal

Part Number: 2850-99
The actual product may vary from images shown
$352.50
QTY:


2850-99 DETAILS

AMT® 2850-99 Self-Priming Centrifugal Pedestal Pump, 1 HP Minimum at 3450 RPM.

AMT® Self-Priming Centrifugal Pedestal Pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Pumps are fitted with a self-cleaning, semi-open impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000.

This pump features a 3/4" stainless steel shaft with a 3/16" x 1" keyway. It can be used for direct or belt drive by an electric motor or gas/diesel engine with a minimum of 1 horse power.

Features:

  • Cast iron construction
  • Carbon/Ceramic seal with Buna-N elastomers
  • Optional SiC/SiC seal with Viton® elastomers
  • Self-cleaning, semi-open impeller
  • Heavy duty, cast iron pedestal drive with sealed ball bearings
  • Self-priming to 20 Ft. @ 3450 RPM
  • Dual volute design- reduces radial load on motor
  • Maximum solids handling size: 3/8"
  • Maximum working pressure: 75 PSI
This unit does NOT come with a motor/engine

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Interchangeable with Grainger Part # 1P884


* AMT® 2850-99

2850-99 FEATURES

  • Cast Iron Construction with Self-Cleaning, Semi-Open Impeller
  • Carbon/Ceramic Buna-N Mechanical Seal
  • Optional Factory Installed SiC/SiC Seal with Viton® Elastomers and O-Ring Valve (285X-301-VS)
  • Dual Volute Design Reduces Radial Load on Motor
  • Self-Priming to 20 Ft with Built-In Check Valve at 3450 RPM
  • Heavy Duty Cast Iron Pedestal Drive with Sealed Ball Bearings with 3/16" x 1" Keyway
  • Maximum Solids Size: 3/8"

2850-99 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 23
  • Shipping Length IN: 11.8
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 6.8
  • SKU: AT285099SP
  • Engine Type:
  • MPN: 2850-99
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702022
    Schedule B Code 8413702022
    ECCN Code EAR99
  • Shipping Width IN: 5.8
  • Driver Type: Bearing Pedestal
  • Outlet Size: 1.25
  • Inlet Size: 1.25
  • Elastomers: Buna-N
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.375
  • Porting Position:
  • Max FLow Rate: 68 GPM
  • Power: 1
  • Run Time:
  • RPM: 4000
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 24.7
