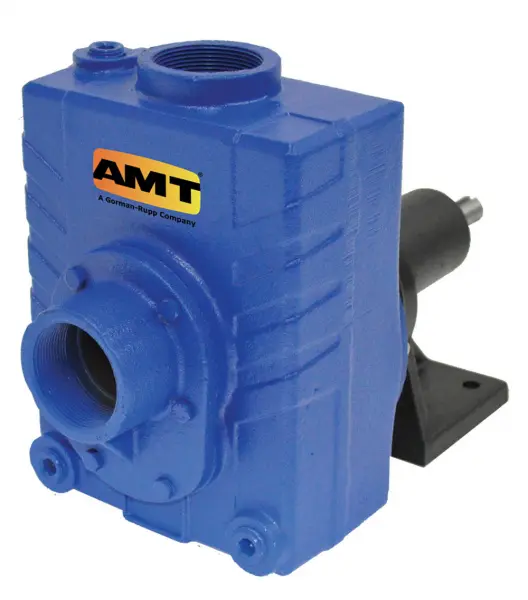

AMT® 2761-99 Self-Priming Centrifugal Pump with Bearing Pedestal

AMT® 2761-99 Self-Priming Centrifugal Pedestal Pump, 3 HP Minimum at 3450 RPM.

AMT® Self-Priming Centrifugal Pedestal Pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Pumps are fitted with a self-cleaning, semi-open impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000.

This pump features a 3/4" stainless steel shaft with a 3/16" x 1 7/8" keyway. It can be used for direct or belt drive by an electric motor or gas/diesel engine with a minimum of 3 horse power at 3450 RPM.

Features:

• Stainless steel construction
• Carbon/Ceramic seal with Viton® elastomers
• Self-cleaning, semi-open impeller
• Heavy duty, cast iron pedestal drive with sealed ball bearings
• Self-priming to 20 Ft. @ 3450 RPM with built-in check valve
• Dual volute design- reduces radial load on motor
• Maximum solids handling size: 3/8"
• Maximum working pressure: 75 PSI

This unit does NOT come with a motor/engine

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® 2761-99
