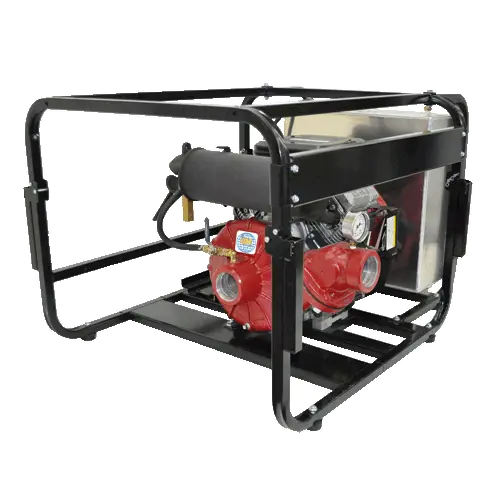

AMT® 25FP23HR 2 1/2" Engine Driven High Pressure Fire Centrifugal Pump

The IPT Engine Driven line of High Pressure/Fire pumps deliver excellent pressure and flow for use in many applications including: fire protection, emergency fire fighting, washdown and AG/Sprinkler. Portable units feature metal fuel tanks installed on engine or frame depending on model. 12 Volt DC electric start engines with recoil starter from Briggs & Stratton Vanguard, Honda Gasoline or Hatz Diesel engines are standard on these pumps. Vanguard models feature built-in exhaust prime. Honda and Yanmar models feature a manual hand prime. These pumps are equipped with Viton® Silicon Carbide/Carbon seal and Viton® O-rings/gaskets.

• Aluminum Construction with Replaceable Hard Coat Anodized Wear Ring
• Viton® Mechanical Seal with Silicon Carbide & Carbon Faces
• 2-1/2˝ NPT Port Sizes
• Exhaust Prime or Hand Prime Depending on Model
• Prime Assist to 19 Ft.
• Built-in Discharge Check Valve
• Discharge Pressure Gauge Included
• Suction Strainer, Nipples and Heavy Duty Steel Roll Frame with Battery Tray Included
• Maximum Head up to 165 PSI/ 380’ TDH
• Delivers to 270 GPM
• Available with B&S Vanguard, Honda Gasoline or Hatz Diesel with 12 Volt DC Electric Start
• Optional NPT to Fire Hose Thread Available but Not Included
• Optional Wheel Kit Available
