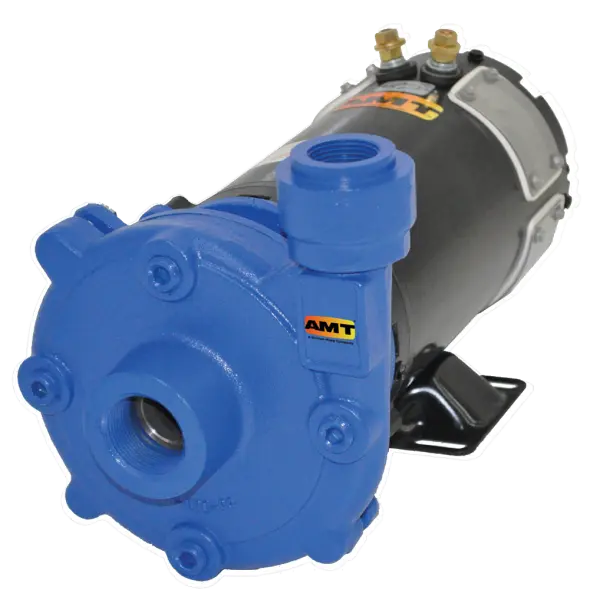

AMT® 12DC-95 12 Volt DC High Head Straight Centrifugal Washdown Cast Iron Pump

AMT® 12DC-95 12 Volt DC High Head Straight Centrifugal Washdown Cast Iron Pump
Model Changed to 12DC-95 From 489G-95

AMT® 12 Volt DC Washdown pumps are designed for OEM, septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. High efficiency impeller maximizes performance. Pumps are not self-priming and require flooded suction. Premium 12 Volt DC washdown duty motors are built to handle high pressure washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with o-ring seals, oversized brushes assuring longer brush life and base mount. Units are not submersible in liquids.

• 300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction
• Viton® Mechanical Seal and O-Ring with Stainless Steel Models
• Buna-N Mechanical Seal and O-Ring with Cast Iron Models
• Discharge Port Rotates in 90° Increments
• (4) Front Drain Plugs

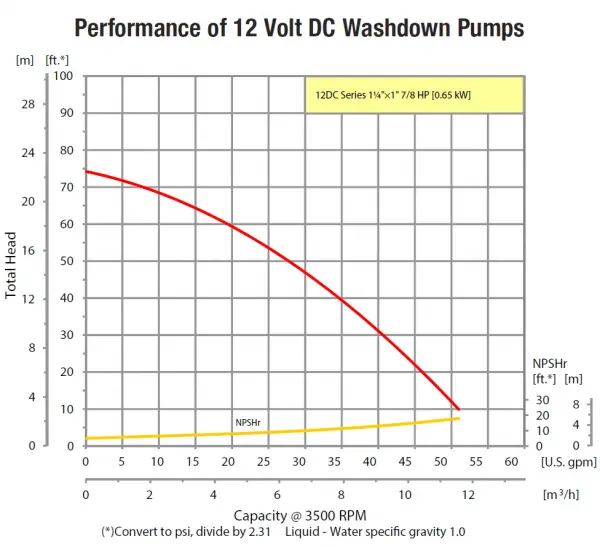

• Maximum Flow 56 GPM
• Maximum Head 80 Ft. (35 PSI)
• High Efficiency Closed Impeller
• 7/8 HP 12 Volt DC Premium Washdown Duty Motor forSevere and Damp/Wet Operating Conditions

See Add On Accessory AMT® A201-90 Mounting Base Not Included Sold Separately
