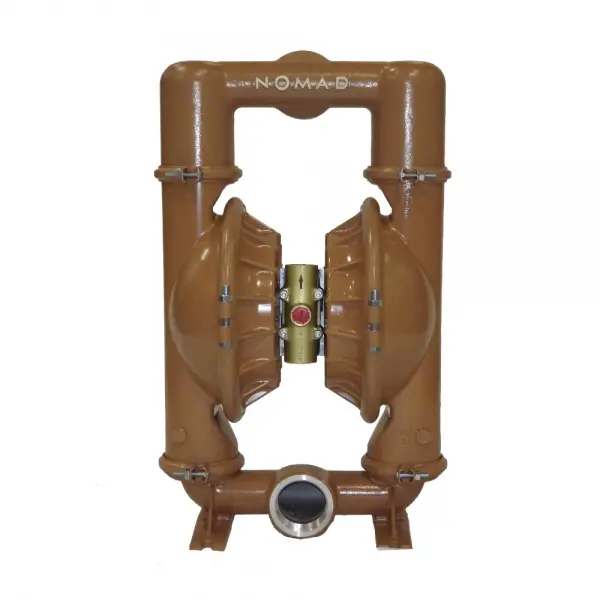

Nomad® 80-211995 2" Ductile Iron Trans-Flo Gold™ AODD Pump, Nordel®/EPDM Diaphragm

Part Number: 80-211995
The actual product may vary from images shown
$3,257.50
QTY:


80-211995 DETAILS

Nomad® 80-211995 2" Ductile Iron Trans-Flo Gold™ AODD Pump, Nordel®/EPDM Diaphragm

Model: NTG80/WAAB/ND/TF/MTF/B/C/X
Similar and Comparable to Wilden® M and T Series

The Nomad® TRANS-FLO gold product line features a rugged anodized aluminum piston-style air valve system, capable of functioning in the harshest compressed air conditions, emphasis on mining, construction and utilitarian applications. The TRANS-FLO GOLD system also features the fewest moving parts in the diaphragm pump business, allowing for ease of maintenance, assembly and disassembly.

Nomad® air diaphragm pumps are widely used in a variety of applications due to their versatility. Nomad® air operated double diaphragm pumps feature few moving parts, with no motor, base plate or other peripherals required. The design style, coupled with its positive displacement functionality, allows for the transfer of shear sensitive products with self-priming up to 25 feet. Nomad® air diaphragm pumps feature low initial investment as well as low replacement costs for wear parts when compared to other pump types.

  • Wetted End Material: Ductile Iron
  • Air Chamber Aluminum
  • Center Block: Aluminum
  • Air Valve: Brass
  • Valve Balls: PTFE
  • Valve Seats: Mild Steel
  • O-Ring Material: PTFE
  • Connection: 2 Inch BSP, Clamped, ATEX

Model Code NTG80/WAAB/ND/TF/MTF/B/C/X

80-211995 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Featuring TRANS FLO GOLD Air Distribution System; a simple, non-stalling design
  • TRANS FLO GOLD features a patent pending differential cap design
  • Tracker™ shaft seals allow for sharp shifts and quality on/off reliability
  • Time proven design that is simple to maintain

80-211995 SPECS

  • Pump Type: TRANS-FLO GOLD NTG50
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Brass
  • Air Inlet Connection Type: BSP
  • Ball Material:
  • Center Block Material:
  • Connection Style:
  • ATEX: ATEX
  • Diaphragm Material: Nordel®/EPDM
  • Displacement per Stroke (gal): 1.40
  • Elastomers: PTFE, PTFE
  • Fittings: Clamped
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Flow Rate (GPM): 232
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.375
  • Model #: NTG80/WAAB/ND/TF/MTF/B/C/X
  • Outlet Size: 3
  • Main Material:
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Valve Balls Material: PTFE
  • Max Discharge Pressure:
  • Valve Seat Material: Mild Steel
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 200.00
  • Shipping Length IN: 32.40
  • Shipping Width IN: 16.80
  • Shipping Height IN: 32.40
  • SKU: NM80211995SP
  • Seal Material:
  • MPN: 80-211995
  • Customs Code: Schedule B Code 8413.50.00.50
