Nomad® 80-21191 3" BSP TRANS-FLO GOLD™ AODD Pump, Ductile Iron w/ PTFE (with Neoprene back-up) Diaphragm

Part Number: 80-21191
The actual product may vary from images shown
$3,267.95
QTY:


80-21191 DETAILS

Nomad® 80-21191 3" BSP TRANS-FLO GOLD™ AODD Pump, Ductile Iron w/ PTFE (with Neoprene back-up) Diaphragm

The TRANS-FLO gold product line features a rugged anodized aluminum piston-style air valve system, capable of functioning in the harshest compressed air conditions, emphasis on mining, construction and utilitarian applications. The TRANS-FLO GOLD system also features the fewest moving parts in the diaphragm pump business, allowing for ease of maintenance, assembly and disassembly. Similar and Comparable to Wilden® M and T Series. Model: NTG80/WAAB/TF/TF/MTF/B/C/X Porting Position: Center Ported

  • Wetted Material: Ductile Iron
  • Center Block: Aluminum
  • Air Chamber: Aluminum
  • Air Valve: Brass
  • Diaphragm: PTFE (with Neoprene back-up)
  • Ball: PTFE (with Neoprene back-up)
  • Connection Type: BSP
  • Clamped
  • ATEX

Model Code NTG80/WAAB/TF/TF/MTF/B/C/X

80-21191 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Featuring TRANS FLO GOLD Air Distribution System; a simple, non-stalling design
  • TRANS FLO GOLD features a patent pending differential cap design
  • Tracker™ shaft seals allow for sharp shifts and quality on/off reliability
  • Time proven design that is simple to maintain

80-21191 SPECS

  • Pump Type: TRANS-FLO GOLD NTG80
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material:
  • Air Inlet Size: 0.75

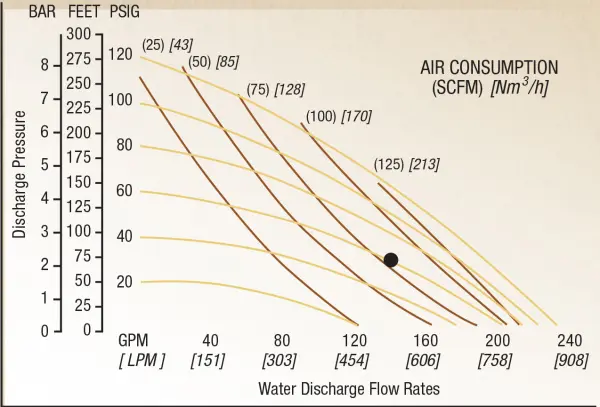

  • Air Consumption:
  • Max Air Inlet Pressure: 125 PSIG
  • Air Valve Material: Brass
  • Air Inlet Connection Type:
  • Ball Material: PTFE (with Neoprene back-up)
  • Center Block Material: Aluminum
  • Connection Style:
  • ATEX:
  • Diaphragm Material: PTFE (with Neoprene back-up)
  • Displacement per Stroke (gal): 0.95
  • Elastomers: PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings:
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 186
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.375
  • Model #: NTG80/WAAB/TF/TF/MTF/B/C/X
  • Outlet Size: 3
  • Main Material: Ductile Iron
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Max Discharge Pressure:
  • Valve Seat Material: Mild Steel
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 200.00
  • Shipping Length IN: 32.40
  • Shipping Width IN: 16.80
  • Shipping Height IN: 32.40
  • SKU: NM8021191SP
  • Seal Material:
  • MPN: 80-21191
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 8413.50.00
