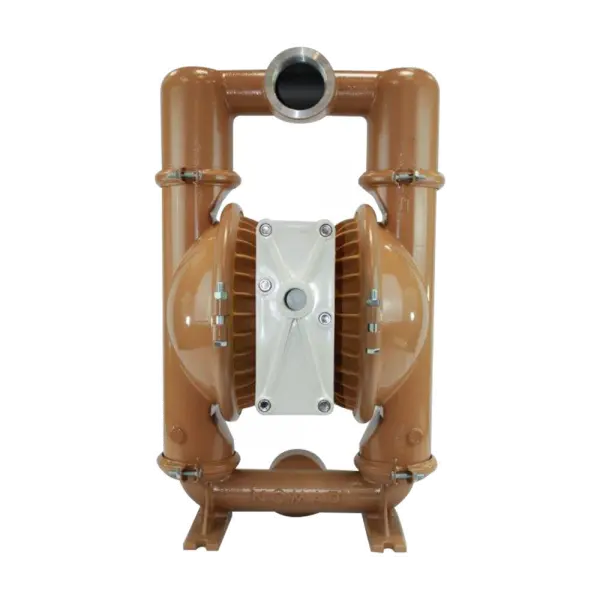

Nomad® 80-211676 3" BSP PWR-FLO™™ AODD Pump, Ductile Iron, Viton Diaphragms

Part Number: 80-211676
The actual product may vary from images shown
$4,029.11
QTY:


80-211676 DETAILS

Nomad® 80-211676 3" BSP PWR-FLO™™ AODD Pump, Ductile Iron, Viton Diaphragms
Clamped PWR-FLO™ AODD 3" MODEL
NPF80/WAAP/VTU/VT/VT/B/C
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


Wet End Material: Ductile
Air Chamber Material: Aluminum
Model Code NPF80/WAAP/VTU/VT/VT/B/C

80-211676 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

80-211676 SPECS

  • Pump Type: PWR-FLO NPF80
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Air Valve Material: Polypropylene
  • Max Air Inlet Pressure: 125
  • Ball Material: Viton
  • Air Inlet Connection Type:
  • Connection Style: Clamped
  • Center Block Material: Aluminum
  • ATEX:
  • Diaphragm Material: Viton
  • Elastomers: Viton, Viton, Viton, Viton
  • Fittings: Clamped
  • Displacement per Stroke (gal): 1.48
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Delivered Pressure: 0
  • Main Material:
  • Max Solids Size: 0.375
  • Model #: NPF80/WAAP/VTU/VT/VT/B/C
  • Max Flow Rate (GPM): 243
  • Outlet Size: 3
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Valve Balls Material: Viton
  • Max Discharge Pressure:
  • Valve Seat O-Ring: Viton
  • Shipping Weight LBS: 200.00
  • Shipping Length IN: 19.90
  • Shipping Width IN: 16.80
  • Valve Seat Material: Viton
  • Shipping Height IN: 32.40
  • SKU: NM80211676SP
  • Seal Material:
  • MPN: 80-211676
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
