Nomad® 80-18663 3" Flanged SS PWR-FLO™ AODD Pump, Santoprene® - UFI Diaphragm

Part Number: 80-18663

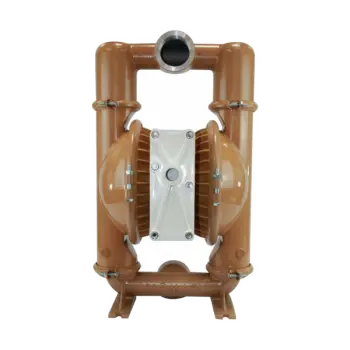

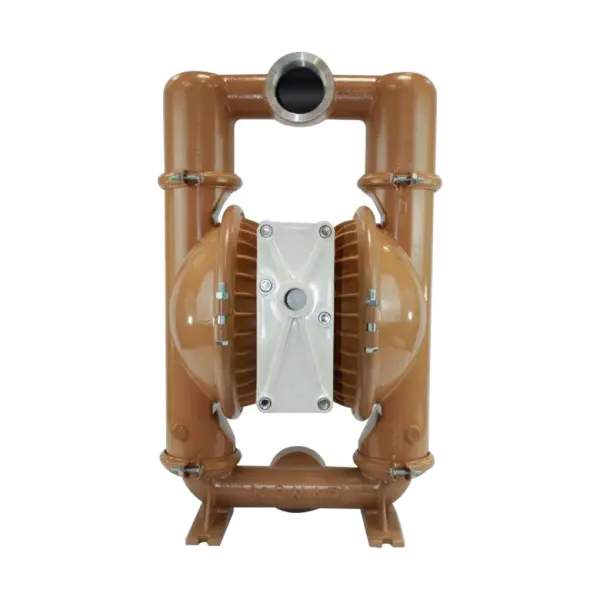

The actual product may vary from images shown
$15,421.18
QTY:


80-18663 DETAILS

Nomad® 80-18663 3" Flanged Stainless Steel PWR-FLO™ AODD Pump, Santoprene® - UFI Diaphragm
Model: NPF80/SAAP/SNF/SN/SN/FL/B
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


  • 3" Model
  • Wetted End Material: Stainless Steel
  • Air Chambers: Aluminum
  • Center Block: Aluminum
  • Air Valve: Polypropylene
  • Connection Type: Flanged
  • Bolted

Model Code NPF80/SAAP/SNF/SN/SN/FL/B

80-18663 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

80-18663 SPECS

  • Pump Type: PWR-FLO NPF80
  • Brand: NOMAD®
  • Wetted Parts: Stainless Steel
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Air Valve Material: Polypropylene
  • Max Air Inlet Pressure: 125
  • Ball Material:
  • Air Inlet Connection Type:
  • Connection Style: Bolted
  • Center Block Material: Aluminum
  • ATEX:
  • Diaphragm Material: Santoprene® - UFI
  • Elastomers: Santoprene, Santoprene®, Santoprene®
  • Fittings: Bolted
  • Displacement per Stroke (gal): 1.48
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type: Flanged
  • Max Delivered Pressure: 0
  • Main Material: Stainless Steel
  • Max Solids Size: 0.375
  • Model #: NPF80/SAAP/SNF/SN/SN/FL/B
  • Max Flow Rate (GPM): 243
  • Outlet Size: 3
  • Outlet Connection Type: Flanged
  • Porting Position:
  • Valve Balls Material: Santoprene®
  • Max Discharge Pressure:
  • Valve Seat O-Ring: Santoprene
  • Shipping Weight LBS: 210.00
  • Shipping Length IN: 32.40
  • Shipping Width IN: 20.60
  • Valve Seat Material: Santoprene
  • Shipping Height IN: 32.40
  • SKU: NM8018663SP
  • Seal Material:
  • MPN: 80-18663
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
