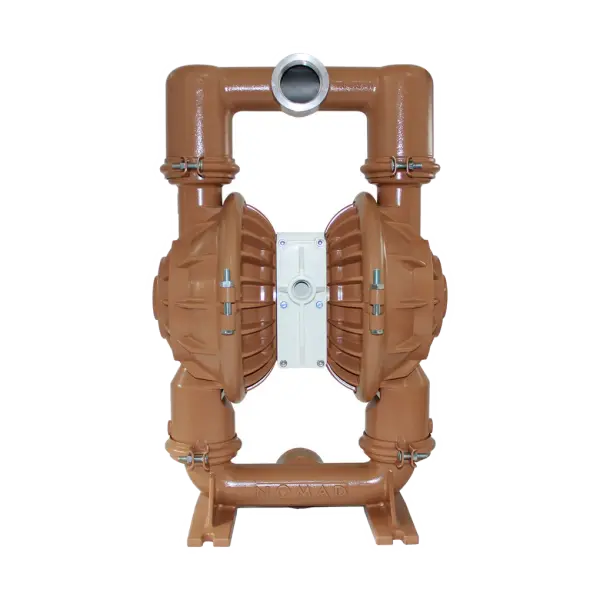

Nomad® 50-511476 2" BSP Ductile Iron PWR-FLO™ AODD Pump, Viton/FKM Diaphragm

Part Number: 50-511476
The actual product may vary from images shown
$3,290.19
QTY:


50-511476 DETAILS

Nomad® 50-511476 2" BSP Ductile Iron PWR-FLO™ AODD Pump, Viton/FKM Diaphragm
Model: NPF50/WWAA/VTU/VT/VT/B/C/X
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


  • 2" Model
  • Wetted End Material: Ductile Iron
  • Air Chambers: Ductile Iron
  • Center Block: Aluminum
  • Air Valve: Aluminum
  • Connection Type: BSP
  • Clamped
  • ATEX

Model Code NPF50/WWAA/VTU/VT/VT/B/C/X

50-511476 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

50-511476 SPECS

  • Pump Type: PWR-FLO NPF50
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material: Ductile Iron
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Air Valve Material: Aluminum
  • Max Air Inlet Pressure: 125
  • Ball Material:
  • Connection Style: Clamped
  • Air Inlet Connection Type:
  • Center Block Material: Aluminum
  • Diaphragm Material: Viton/FKM
  • Elastomers: Viton, Viton/FKM, Viton/FKM
  • ATEX: ATEX
  • Fittings: Clamped
  • Displacement per Stroke (gal): 0.70
  • Inlet Size: 2
  • Inlet Connection Type: BSP
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Discharge Pressure:
  • Model #: NPF50/WWAA/VTU/VT/VT/B/C/X
  • Max Flow Rate (GPM): 164.7
  • Outlet Size: 2
  • Main Material: Ductile Iron
  • Outlet Connection Type: BSP
  • Porting Position:
  • Valve Balls Material: Viton/FKM
  • Valve Seat O-Ring: Viton
  • Shipping Weight LBS: 104.00
  • Shipping Length IN: 26.30
  • Max Discharge Pressure:
  • Shipping Width IN: 13.50
  • Valve Seat Material: Viton
  • Shipping Height IN: 26.30
  • SKU: NM50511476SP
  • MPN: 50-511476
  • Seal Material:
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
