Nomad® 50-25971-2-50 2" BSP Alum TRANS-FLO™ AODD Pump, Neoprene Diaphragm

Part Number: 50-25971-2-50

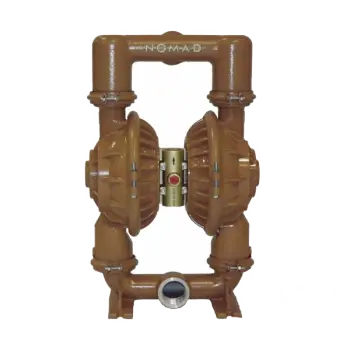

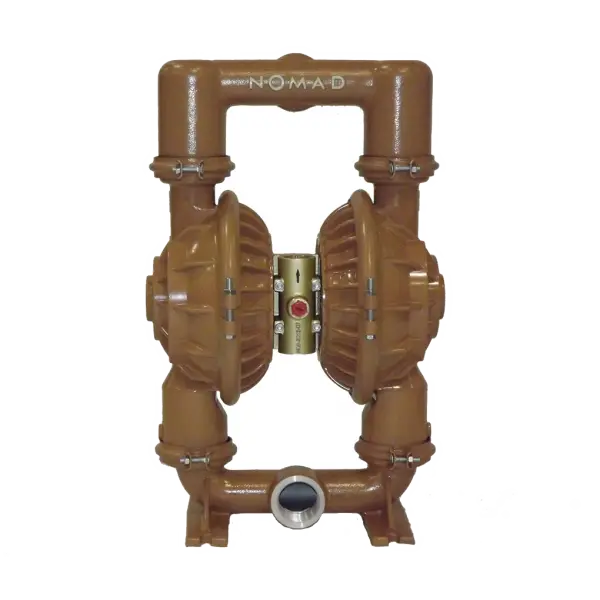

The actual product may vary from images shown
$1,888.08
QTY:


50-25971-2-50 DETAILS

Nomad® 50-25971-2-50 2" BSP Aluminum TRANS-FLO™ AODD Pump, Neoprene Diaphragm
Model: NTG50/AAAB/NEU/NE/NE/B/SB/C/X/50
Similar and Comparable to Wilden® M and T Series

The TRANS-FLO™ gold product line features a rugged anodized aluminum piston-style air valve system, capable of functioning in the harshest compressed air conditions, emphasis on mining, construction and utilitarian applications. The TRANS-FLO™ GOLD system also features the fewest moving parts in the diaphragm pump business, allowing for ease of maintenance, assembly and disassembly.


  • 2" Model
  • Wetted End Material: Aluminum
  • Air Chambers: Aluminum
  • Center Block: Aluminum
  • Air Valve: Brass
  • Connection Type: BSP
  • Clamped
  • ATEX

Model Code NTG50/AAAB/NEU/NE/NE/B/SB/C/X/50

50-25971-2-50 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Featuring TRANS FLO GOLD Air Distribution System; a simple, non-stalling design
  • TRANS FLO GOLD features a patent pending differential cap design
  • Tracker™ shaft seals allow for sharp shifts and quality on/off reliability
  • Time proven design that is simple to maintain
  • Air driven double diaphragm pumps handle large solids and slurries

50-25971-2-50 SPECS

  • Pump Type: TRANS-FLO GOLD NTG50
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Brass
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Aluminum
  • Connection Style: Clamped
  • ATEX: ATEX
  • Diaphragm Material: Neoprene
  • Displacement per Stroke (gal): 0.71
  • Elastomers: Neoprene, Neoprene, Neoprene
  • Fittings: Clamped
  • Inlet Size: 2
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 163
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NTG50/AAAB/NEU/NE/NE/B/SB/C/X/50
  • Outlet Size: 2
  • Main Material: Aluminum
  • Outlet Connection Type: BSP
  • Porting Position:
  • Valve Balls Material: Neoprene
  • Max Discharge Pressure:
  • Valve Seat Material: Neoprene
  • Valve Seat O-Ring: Neoprene
  • Shipping Weight LBS: 72.00
  • Shipping Length IN: 26.30
  • Shipping Width IN: 13.50
  • Shipping Height IN: 26.30
  • SKU: NM5025971250SP
  • Seal Material:
  • MPN: 50-25971-2-50
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
