Home / Nomad / NOMAD® Pumps / NOMAD® 50-25968 2" TRANS-FLO™ GOLD AODD Pump, Aluminum with FBSP Ports

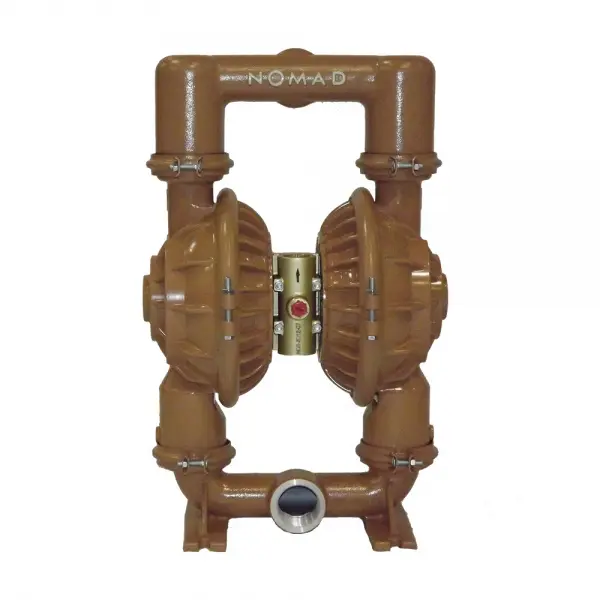

NOMAD® 50-25968 2" TRANS-FLO™ GOLD AODD Pump, Aluminum with FBSP Ports

Part Number: 50-25968
The actual product may vary from images shown
$1,675.48
QTY:


50-25968 DETAILS

NOMAD® 50-25968 2" TRANS-FLO™ GOLD AODD Pump, Aluminum with FBSP Ports
ALUMINUM MODEL
2" MODEL
NTG50/AAAB/PU/PU/PU/B/X
NOMAD®™ low cost, high quality TRANS-FLO™ GOLD™ air operated double diaphragm pumps.
Similar and Comparable to Wilden® M and T Series

TRANS-FLO™ GOLD™ pumps feature a simple, time proven design. Simple to maintain with readily available parts. Fast assembly and delivery time. The TRANS-FLO™ GOLD™ Air-Distribution System is a non-stalling design for consistent performance. NOMAD®™ AODD pumps also feature Tracker™ Seals: NOMAD®™ shaft o-ring seals feature a proprietary design created by the world's preeminent seal material specialist. Low cost, water resistant & easy to install, the Tracker™ Seal allows for a sharp shift & quality on/off reliability.

  • Wet End Material: Aluminum
  • Air Chambers: Aluminum
  • Center Block: Aluminum
  • Air Valve: Brass
  • Connection Type: FBSP

Model Code NTG50/AAAB/PU/PU/PU/B/C/X

50-25968 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Featuring TRANS FLO GOLD Air Distribution System; a simple, non-stalling design
  • TRANS FLO GOLD features a patent pending differential cap design
  • Tracker™ shaft seals allow for sharp shifts and quality on/off reliability
  • Time proven design that is simple to maintain
  • Air driven double diaphragm pumps handle large solids and slurries

50-25968 SPECS

  • Pump Type: TRANS-FLO GOLD NTG50
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material:
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure:
  • Air Valve Material: Brass
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Aluminum
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material:
  • Displacement per Stroke (gal):
  • Elastomers:
  • Fittings: Clamped
  • Inlet Size: 2
  • Discharge Pressure: 120
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 163
  • Max Delivered Pressure: 120
  • Max Solids Size: 6.4
  • Model #: NTG50/AAAB/PU/PU/PU/B/C/X
  • Outlet Size: 2
  • Main Material: Aluminum
  • Outlet Connection Type: BSP
  • Porting Position:
  • Valve Balls Material:
  • Max Discharge Pressure: 120
  • Valve Seat Material:
  • Valve Seat O-Ring:
  • Shipping Weight LBS: 72.00
  • Shipping Length IN: 13.50
  • Shipping Width IN: 15.90
  • Shipping Height IN: 26.30
  • SKU: NM5025968SP
  • Seal Material:
  • MPN: 50-25968
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
