Nomad® 50-25636 2" Aluminum Pwr-Flo™ AODD Pump, Neoprene Diaphragm

Part Number: 50-25636

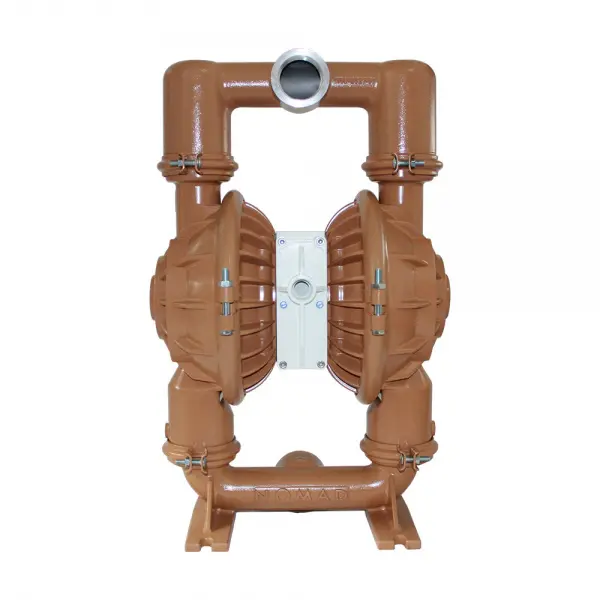

The actual product may vary from images shown
$1,741.57
QTY:


50-25636 DETAILS

Nomad® 50-25636 2" Aluminum Pwr-Flo™ AODD Pump, Neoprene Diaphragm

Model: NPF50/AAPP/NE/BN/BN/B/C
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Aluminum
  • Air Chamber Aluminum
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Valve Balls: Buna
  • Valve Seats: Buna
  • O-Ring Material: Buna
  • Connection: 2 Inch BSP, Clamped

50-25636 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

50-25636 SPECS

  • Pump Type: PWR-FLO NPF50
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type: BSP
  • Ball Material:
  • Center Block Material:
  • Connection Style:
  • ATEX:
  • Diaphragm Material: Neoprene
  • Displacement per Stroke (gal): 0.70
  • Elastomers: Buna, Buna
  • Fittings: Clamped
  • Inlet Size: 2
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Flow Rate (GPM): 164.7
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NPF50/AAPP/NE/BN/BN/B/C
  • Outlet Size: 2
  • Main Material:
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Max Discharge Pressure:
  • Valve Balls Material: Buna
  • Valve Seat Material: Buna
  • Valve Seat O-Ring: Buna
  • Shipping Weight LBS: 70.00
  • Shipping Length IN: 26.30
  • Shipping Width IN: 13.50
  • Shipping Height IN: 26.30
  • SKU: NM5025636SP
  • Seal Material:
  • MPN: 50-25636
  • Customs Code: Schedule B Code 8413.50.00.50
