Nomad® 50-22631 2 PWR-FLO™ AODD Pump, Polypropylene Neoprene Diaphragms & Flanged Ports

Part Number: 50-22631

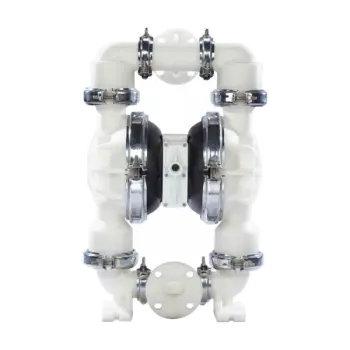

The actual product may vary from images shown
$4,364.72
QTY:


50-22631 DETAILS

Nomad® 50-22631 2 PWR-FLO™ AODD Pump, Polypropylene Neoprene Diaphragms & Flanged Ports
The Nomad®™ low cost, high quality PWR-FLO™ air operated double diaphram pumps.
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

PWR-FLO™™ asymmetrical spool design (ASD) features an efficient air system. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications.
The air valve and center section is made of chemically resistant polypropylene.
Model: NPF50/PAPP/NE/NE/PNE/FL/C

  • 2" Model
  • Connection: NPT
  • Wet End Material: Polypropylene
  • Air Chamber: Aluminum

50-22631 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

50-22631 SPECS

  • Pump Type: PWR-FLO NPF50
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: Neoprene
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: Neoprene
  • Displacement per Stroke (gal): 0.73
  • Elastomers: Neoprene, Neoprene, Neoprene
  • Fittings: Clamped
  • Inlet Size: 2
  • Discharge Pressure:
  • Inlet Connection Type: Flanged
  • Max Flow Rate (GPM): 156
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NPF50/PAPP/NE/NE/PNE/FL/C
  • Outlet Size: 2
  • Main Material: Polypropylene
  • Outlet Connection Type: Flanged
  • Porting Position: Center Ported
  • Max Discharge Pressure:
  • Valve Balls Material: Neoprene
  • Valve Seat Material: Poly
  • Valve Seat O-Ring: Neoprene
  • Shipping Weight LBS: 70.00
  • Shipping Length IN: 15.90
  • Shipping Width IN: 13.50
  • Shipping Height IN: 26.30
  • SKU: NM5022631SP
  • Seal Material:
  • MPN: 50-22631
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
