Home / Nomad / NOMAD® Pumps / Nomad® 50-1847-1 2" Stainless Steel Pwr-Flo™ AODD Pump, Nordel®/EPDM Diaphragm

Nomad® 50-1847-1 2" Stainless Steel Pwr-Flo™ AODD Pump, Nordel®/EPDM Diaphragm

Part Number: 50-1847-1

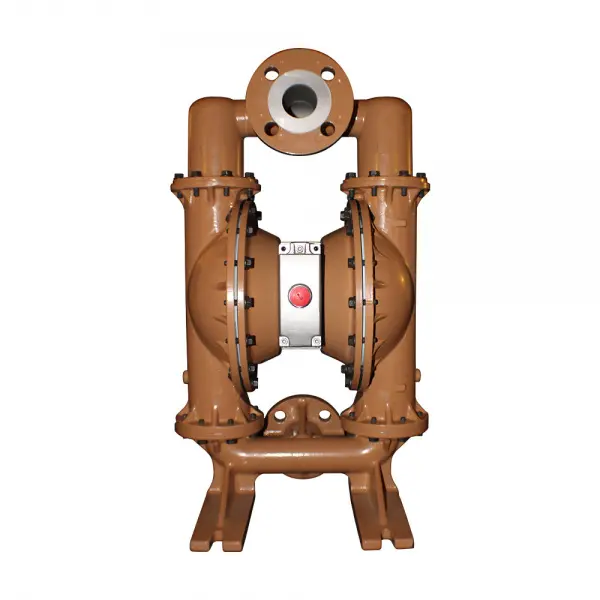

The actual product may vary from images shown
$6,830.17
QTY:


50-1847-1 DETAILS

Nomad® 50-1847-1 2" Stainless Steel Pwr-Flo™ AODD Pump, Nordel®/EPDM Diaphragm

Model: NPF50/SAAA/ND/ND/ND/FL/B/X
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Stainless Steel
  • Air Chamber Aluminum
  • Center Block: Aluminum
  • Air Valve: Aluminum
  • Valve Balls: Nordel®/EPDM
  • Valve Seats: Nordel®/EPDM
  • O-Ring Material: Nordel®/EPDM
  • Connection: 2 Inch Flange, Bolted, ATEX

50-1847-1 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

50-1847-1 SPECS

  • Pump Type: PWR-FLO NPF50
  • Brand: NOMAD®
  • Wetted Parts: Stainless Steel
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Aluminum
  • Air Inlet Connection Type: Flange
  • Ball Material:
  • Center Block Material:
  • Connection Style:
  • ATEX: ATEX
  • Diaphragm Material: Nordel®/EPDM
  • Displacement per Stroke (gal): 0.73
  • Elastomers: Nordel®/EPDM, Nordel®/EPDM
  • Fittings: Bolted
  • Inlet Size: 2
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Flow Rate (GPM): 158
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NPF50/SAAA/ND/ND/ND/FL/B/X
  • Outlet Size: 2
  • Main Material:
  • Outlet Connection Type: Flange
  • Porting Position: Center Ported Flanged
  • Max Discharge Pressure:
  • Valve Balls Material: Nordel®/EPDM
  • Valve Seat Material: Nordel®/EPDM
  • Valve Seat O-Ring: Nordel®/EPDM
  • Shipping Weight LBS: 220.00
  • Shipping Length IN: 17.30
  • Shipping Width IN: 13.40
  • Shipping Height IN: 29.90
  • SKU: NM5018471SP
  • Seal Material:
  • MPN: 50-1847-1
  • Customs Code: Schedule B Code 8413.50.00.50

TECHNICAL DOCUMENTS
