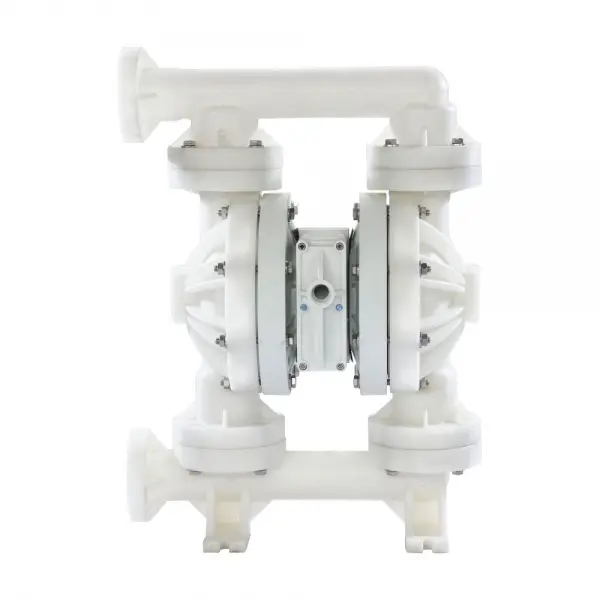

Nomad® 50-12663-1 2" Polypropylene Pwr-Flo™ AODD Pump, Santoprene® -UFI Diaphragm

Part Number: 50-12663-1
The actual product may vary from images shown
$3,859.53
QTY:


50-12663-1 DETAILS

Nomad® 50-12663-1 2" Polypropylene Pwr-Flo™ AODD Pump, Santoprene® -UFI Diaphragm

Model: NPF50/PPPP/SNF/TF/PTV/FL/B
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Polypropylene
  • Air Chamber Polypropylene
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Valve Balls: PTFE
  • Valve Seats: Viton® Encapsulated
  • O-Ring Material: Viton® Encapsulated
  • Connection: 2 Inch Flange, Bolted

Model Code NPF50/PPPP/SNF/TF/PTV/FL/B

50-12663-1 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

50-12663-1 SPECS

  • Pump Type: PWR-FLO NPF50
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type: Flange
  • Ball Material: PTFE
  • Center Block Material: Polypropylene
  • Connection Style: Bolted
  • ATEX:
  • Diaphragm Material: Santoprene® -UFI
  • Displacement per Stroke (gal): 0.73
  • Elastomers: Viton® Encapsulated, PTFE, PTFE
  • Fittings: Bolted
  • Inlet Size: 2
  • Discharge Pressure:
  • Inlet Connection Type: Flanged
  • Max Flow Rate (GPM): 165
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NPF50/PPPP/SNF/TF/PTV/FL/B
  • Outlet Size: 2
  • Main Material: Polypropylene
  • Outlet Connection Type: Flange
  • Porting Position: Side Ported Flanged
  • Valve Balls Material: PTFE
  • Max Discharge Pressure:
  • Valve Seat Material: Viton® Encapsulated
  • Valve Seat O-Ring: Viton® Encapsulated
  • Shipping Weight LBS: 70.00
  • Shipping Length IN: 31.70
  • Shipping Width IN: 13.90
  • Shipping Height IN: 31.70
  • SKU: NM50126631SP
  • Seal Material:
  • MPN: 50-12663-1
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
