Nomad® 40-27673 1 1/2 PWR-FLO™ AODD Pump, Stainless Steel Polyurethane UFI Diaphragms & BSP Ports

Part Number: 40-27673

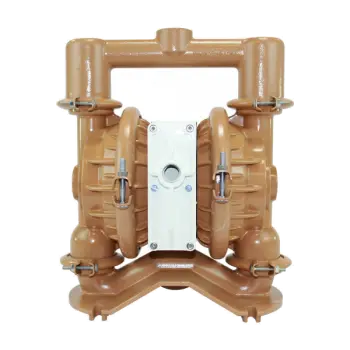

The actual product may vary from images shown
$4,072.93
QTY:


40-27673 DETAILS

Nomad® 40-27673 1 1/2 PWR-FLO™ AODD Pump, Stainless Steel Polyurethane UFI Diaphragms & BSP Ports
The Nomad®™ low cost, high quality PWR-FLO™ air operated double diaphram pumps.
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

PWR-FLO™™ asymmetrical spool design (ASD) features an efficient air system. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications.
The air valve and center section is made of chemically resistant polypropylene.
Model: NPF40/SAPP/PUF/PU/PU/N/C

  • 1.5" Model
  • Connection: BSP
  • Wet End Material: Stainless Steel
  • Air Chamber: Aluminum

Model Code NPF40/SAPP/PUF/PU/PU/B/C

40-27673 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

40-27673 SPECS

  • Pump Type: PWR-FLO NPF40
  • Brand: NOMAD®
  • Wetted Parts: Stainless Steel
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: polyurethane
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: Polyurethane UFI
  • Displacement per Stroke (gal): 0.26
  • Elastomers: Polyurethane, Polyurethane
  • Fittings: Clamped
  • Inlet Size: 1.5
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 76
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.1875
  • Model #: NPF40/SAPP/PUF/PU/PU/B/C
  • Outlet Size: 1.25
  • Main Material: Stainless Steel
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported Inlet Center Top Ported Discharge
  • Valve Balls Material: polyurethane
  • Max Discharge Pressure:
  • Valve Seat Material: polyurethane
  • Valve Seat O-Ring:
  • Shipping Weight LBS: 150.00
  • Shipping Length IN: 18.80
  • Shipping Width IN: 11.80
  • Shipping Height IN: 26.30
  • SKU: NM4027673SP
  • Seal Material:
  • MPN: 40-27673
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
