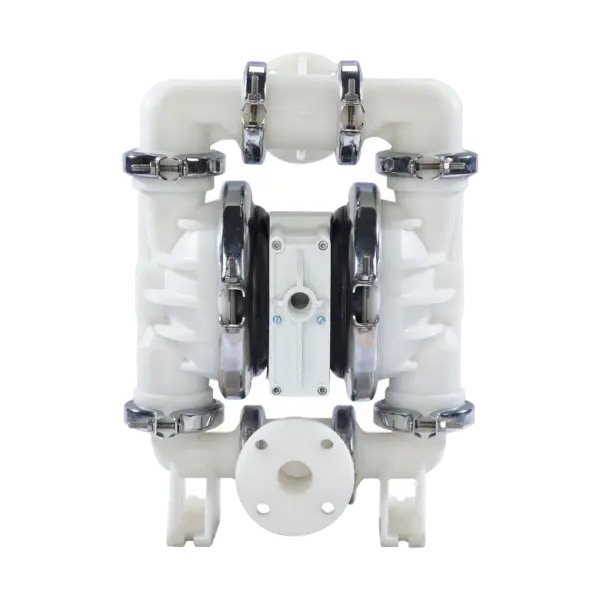

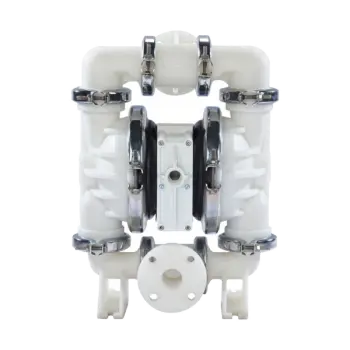

Nomad® 40-22641 1.5" Flanged Poly PWR-FLO™ AODD Pump, Santoprene® Diaphragm

Part Number: 40-22641
The actual product may vary from images shown
$2,404.27
QTY:


40-22641 DETAILS

Nomad® 40-22641 1.5" Flanged Polypropylene PWR-FLO™ AODD Pump, Santoprene® Diaphragm
Model: NPF40/PAPP/SN/TF/PTF/FL/C
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


  • 1 1/2" Model
  • Wetted End Material: Polypropylene
  • Air Chambers: Aluminum
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Connection Type: Flanged
  • Clamped

Model Code NPF40/PAPP/SN/TF/PTF/FL/C

40-22641 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

40-22641 SPECS

  • Pump Type: PWR-FLO NPF40
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: Santoprene®
  • Displacement per Stroke (gal): 0.31
  • Elastomers: PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings: Clamped
  • Inlet Size: 1.5
  • Discharge Pressure:
  • Inlet Connection Type: Flanged

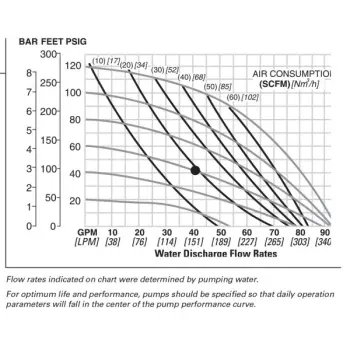

  • Max Flow Rate (GPM): 92
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.1875
  • Model #: NPF40/PAPP/SN/TF/PTF/FL/C
  • Outlet Size: 1.5
  • Main Material: Polypropylene
  • Outlet Connection Type: Flanged
  • Porting Position:
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Max Discharge Pressure:
  • Valve Seat Material: Polypropylene
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 37.00
  • Shipping Length IN: 20.80
  • Shipping Width IN: 11.20
  • Shipping Height IN: 20.80
  • SKU: NM4022641SP
  • Seal Material:
  • MPN: 40-22641
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
