Nomad® 40-211470 1 1/2" PWR-FLO™ AODD Pump, Ductile Iron w/ Hytrel® UFI Diaphragm & BSP Ports

Part Number: 40-211470

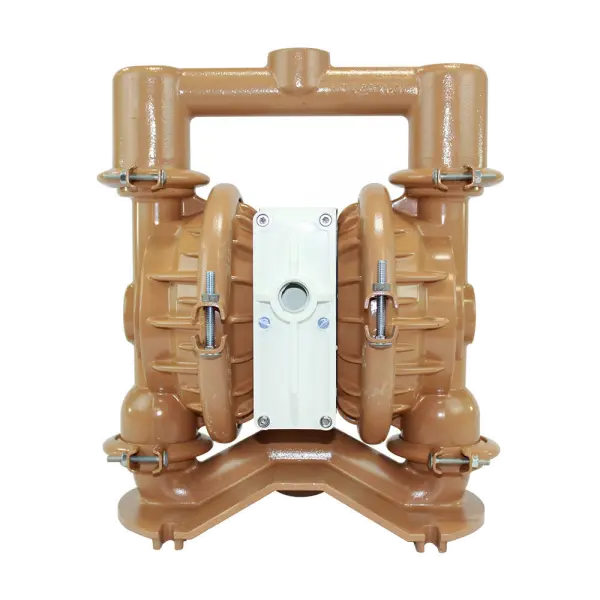

The actual product may vary from images shown
$1,722.40
QTY:


40-211470 DETAILS

Nomad® 40-211470 1 1/2" PWR-FLO™ AODD Pump, Ductile Iron with Hytrel® UFI Dipahragms & BSP Ports

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design".
Model: NPF40/WAAA/FGF/FG/FG/B/C
Model Code NPF40/WAAA/FGF/FG/FG/B/C/X

40-211470 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

40-211470 SPECS

  • Pump Type: PWR-FLO NPF40
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material:
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: Hytrel®
  • Center Block Material: Aluminum
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: Hytrel® UFI
  • Displacement per Stroke (gal): 0.26
  • Elastomers: Hytrel, Hytrel®, Hytrel®
  • Fittings: Clamped
  • Inlet Size: 1.5
  • Discharge Pressure:
  • Inlet Connection Type: BSP

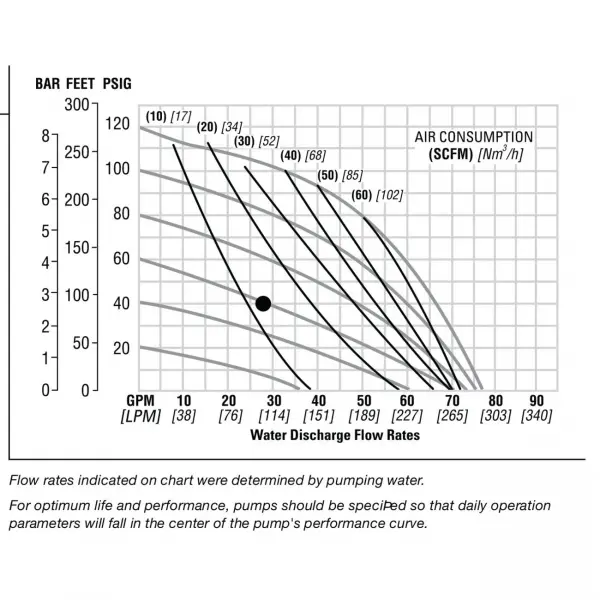

  • Max Flow Rate (GPM): 76
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.1875
  • Model #: NPF40/WAAA/FGF/FG/FG/B/C/X
  • Outlet Size: 1.25
  • Main Material:
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported Inlet Center Top Ported Discharge
  • Valve Balls Material: Hytrel®
  • Max Discharge Pressure:
  • Valve Seat Material: Hytrel
  • Valve Seat O-Ring: Hytrel
  • Shipping Weight LBS: 71.00
  • Shipping Length IN: 16.90
  • Shipping Width IN: 12.10
  • Shipping Height IN: 16.90
  • SKU: NM40211470SP
  • Seal Material:
  • MPN: 40-211470
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
