Nomad® 40-126621 1 1/2 PWR-FLO™ AODD Pump, Polypropylene PTFE-Full Flow Diaphragms & Flanged Ports

Part Number: 40-126621
The actual product may vary from images shown
$3,064.92
QTY:


40-126621 DETAILS

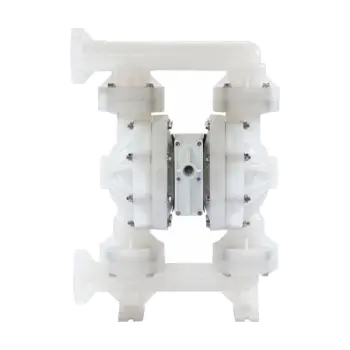

Nomad® 40-126621 1 1/2 PWR-FLO™ AODD Pump, Polypropylene PTFE-Full Flow Diaphragms & Flanged Ports
The Nomad®™ low cost, high quality PWR-FLO™ air operated double diaphram pumps.
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

PWR-FLO™™ asymmetrical spool design (ASD) features an efficient air system. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications.
The air valve and center section is made of chemically resistant polypropylene.
Model: NPF40/PPPP/TFF/TF/PTF/FL/B

  • 1.5" Model
  • Connection: NPT
  • Wet End Material: Polypropylene
  • Air Chamber: Polypropylene

Model Code NPF40/PPPP/TFF/TF/PTF/FL/B

40-126621 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

40-126621 SPECS

  • Pump Type: PWR-FLO NPF40
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: PTFE
  • Center Block Material: Polypropylene
  • Connection Style: Bolted
  • ATEX:
  • Diaphragm Material: PTFE-Full Flow
  • Displacement per Stroke (gal): 0.33
  • Elastomers: PTFE, PTFE, PTFE
  • Fittings: Bolted
  • Inlet Size: 1.5
  • Discharge Pressure:
  • Inlet Connection Type: Flanged

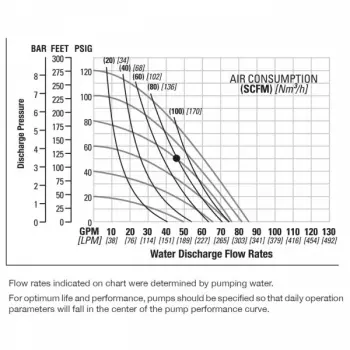

  • Max Flow Rate (GPM): 120
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.25
  • Model #: NPF40/PPPP/TFF/TF/PTF/FL/B
  • Outlet Size: 1.5
  • Main Material: Polypropylene
  • Outlet Connection Type: Flanged
  • Porting Position: side Port Flanged
  • Valve Balls Material: PTFE
  • Max Discharge Pressure:
  • Valve Seat Material: Poly
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 41.00
  • Shipping Length IN: 18.80
  • Shipping Width IN: 11.80
  • Shipping Height IN: 26.30
  • SKU: NM40126621SP
  • Seal Material:
  • MPN: 40-126621
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
