Nomad® 25-16467 1" NPT Alum PWR-FLO™ AODD Pump, Garlock® - Viton BACKED Diaphragm

Part Number: 25-16467

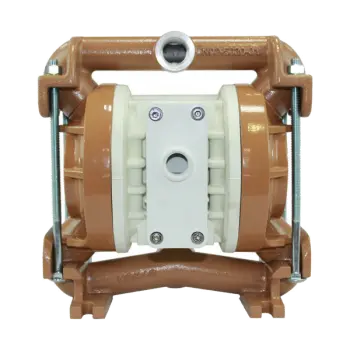

The actual product may vary from images shown
$2,799.20
QTY:


25-16467 DETAILS

Nomad® 25-16467 1" NPT Aluminum PWR-FLO™ AODD Pump, Garlock® - Vit on BACKED Diaphragm
Model: NPF25/AAAA/TGV/TF/ATF/N/B/X
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


  • 1" Model
  • Wetted End Material: Aluminum
  • Air Chambers: Aluminum
  • Center Block: Aluminum
  • Air Valve: Aluminum
  • Connection Type: NPT
  • Bolted
  • ATEX

Model Code NPF25/AAAA/TGV/TF/ATF/N/B/X

25-16467 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

25-16467 SPECS

  • Pump Type: PWR-FLO NPF25
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.25
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Aluminum
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Aluminum
  • Connection Style: Bolted
  • ATEX: ATEX
  • Diaphragm Material: Garlock® - Vit on BACKED
  • Displacement per Stroke (gal): 0.09
  • Elastomers: PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings: Bolted
  • Inlet Size: 1
  • Discharge Pressure:
  • Inlet Connection Type: NPT
  • Max Flow Rate (GPM): 45
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.125
  • Model #: NPF25/AAAA/TGV/TF/ATF/N/B/X
  • Outlet Size: 0.75
  • Main Material: Aluminum
  • Outlet Connection Type: NPT
  • Porting Position:
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Max Discharge Pressure:
  • Valve Seat Material: Aluminum
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 26.00
  • Shipping Length IN: 11.00
  • Shipping Width IN: 7.90
  • Shipping Height IN: 11.00
  • SKU: NM2516467SP
  • Seal Material:
  • MPN: 25-16467
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
