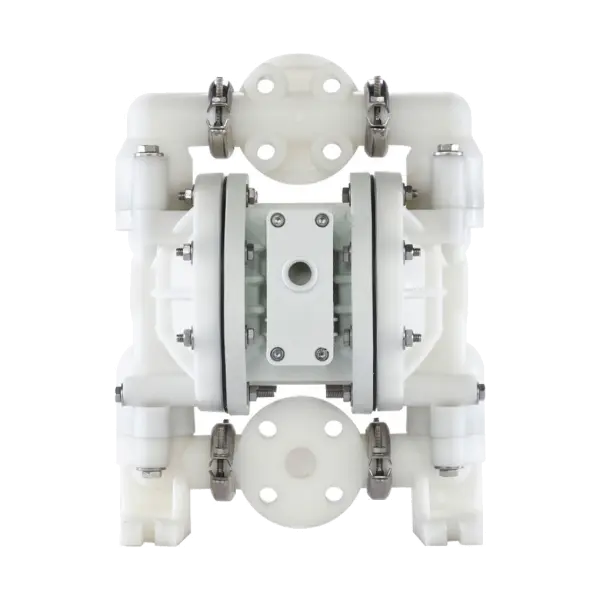

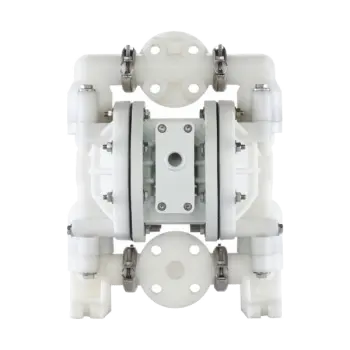

Nomad® 25-12662-1 1" Flanged Poly PWR-FLO™ AODD Pump, PTFE - UFI Diaphragm

Part Number: 25-12662-1
The actual product may vary from images shown
$1,638.32
QTY:


25-12662-1 DETAILS

Nomad® 25-12662-1 1" Flanged Polypropylene PWR-FLO™ AODD Pump, PTFE - UFI Diaphragm
Model: NPF25/PPPP/TFF/TF/PTF/FL/B
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

The PWR-FLO™ asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.


  • 1" Model
  • Wetted End Material: Polypropylene
  • Air Chambers: Polypropylene
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Connection Type: Flanged
  • Bolted

Model Code NPF25/PPPP/TFF/TF/PTF/FL/B

25-12662-1 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

25-12662-1 SPECS

  • Pump Type: PWR-FLO NPF25
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.25
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Polypropylene
  • Connection Style: Bolted
  • ATEX:
  • Diaphragm Material: PTFE - UFI
  • Displacement per Stroke (gal): 0.09
  • Elastomers: PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings: Bolted
  • Inlet Size: 1
  • Discharge Pressure:
  • Inlet Connection Type: Flanged
  • Max Flow Rate (GPM): 34
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.125
  • Model #: NPF25/PPPP/TFF/TF/PTF/FL/B
  • Outlet Size: 1
  • Main Material: Polypropylene
  • Outlet Connection Type: Flanged
  • Porting Position:
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Max Discharge Pressure:
  • Valve Seat Material: Polypropylene
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 22.00
  • Shipping Length IN: 16.00
  • Shipping Width IN: 8.06
  • Shipping Height IN: 16.00
  • SKU: NM25126621SP
  • Seal Material:
  • MPN: 25-12662-1
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
