Nomad® 15-25665 1/2 PWR-FLO™ AODD Pump, Aluminum Garlock®-NEO BACKED Diaphragms & BSP Ports

Part Number: 15-25665

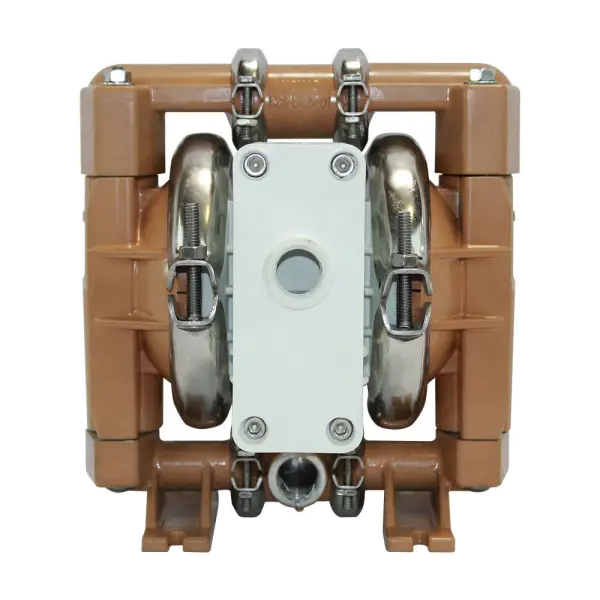

The actual product may vary from images shown
$1,711.82
QTY:


15-25665 DETAILS

Nomad® 15-25665 1/2 PWR-FLO™ AODD Pump, Aluminum Garlock®-NEO BACKED Diaphragms & BSP Ports
The Nomad®™ low cost, high quality PWR-FLO™ air operated double diaphram pumps.
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

PWR-FLO™™ asymmetrical spool design (ASD) features an efficient air system. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications.
The air valve and center section is made of chemically resistant polypropylene.
Model: NPF15/APPP/TGN/TF/ATF/B/C

  • 0.5" Model
  • Connection: BSP
  • Wet End Material: Aluminum
  • Air Chamber: Polypropylene

Model Code NPF15/APPP/TGN/TF/ATF/B/C

15-25665 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

15-25665 SPECS

  • Pump Type: PWR-FLO NPF15
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.25
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: PTFE
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: Garlock®-NEO BACKED
  • Displacement per Stroke (gal): 0.03
  • Elastomers: PTFE, PTFE, PTFE
  • Fittings: Clamped
  • Inlet Size: 0.5
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 15
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.0625
  • Model #: NPF15/APPP/TGN/TF/ATF/B/C
  • Outlet Size: 0.5
  • Main Material: Aluminum
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Valve Balls Material: PTFE
  • Max Discharge Pressure:
  • Valve Seat Material: Aluminum
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 13.00
  • Shipping Length IN: 9.20
  • Shipping Width IN: 7.90
  • Shipping Height IN: 10.90
  • SKU: NM1525665SP
  • Seal Material:
  • MPN: 15-25665
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
