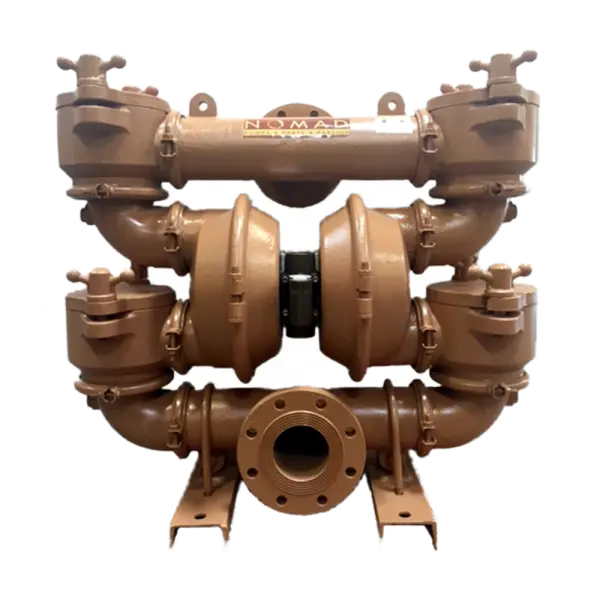

NOMAD® 100-512768 4" TRANS-FLO™ GOLD AODD Pump, Ductile Iron with Flange Ports

Part Number: 100-512768
The actual product may vary from images shown
$11,578.58
QTY:


100-512768 DETAILS

NOMAD® 100-512768 4" TRANS-FLO™ GOLD AODD Pump, Ductile Iron with Flange Ports
DUCTILE IRON MODEL
4" MODEL
NT100/WWPB/PU/PU/PU/FL
NOMAD®™ low cost, high quality TRANS-FLO™ GOLD™ air operated double diaphragm pumps.
Similar and Comparable to Wilden® M and T Series

TRANS-FLO™ GOLD™ pumps feature a simple, time proven design. Simple to maintain with readily available parts. Fast assembly and delivery time. The TRANS-FLO™ GOLD™ Air-Distribution System is a non-stalling design for consistent performance. NOMAD®™ AODD pumps also feature Tracker™ Seals: NOMAD®™ shaft o-ring seals feature a proprietary design created by the world's preeminent seal material specialist. Low cost, water resistant & easy to install, the Tracker™ Seal allows for a sharp shift & quality on/off reliability.

  • Wet End Material: Ductile Iron
  • Air Chambers: Ductile Iron
  • Center Block: Polypropylene
  • Air Valve: Brass
  • Connection Type: Flange

Model Code NT100/WWPB/PU/PU/PU/FL/C

100-512768 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Featuring TRANS FLO GOLD Air Distribution System; a simple, non-stalling design
  • TRANS FLO GOLD features a patent pending differential cap design
  • Tracker™ shaft seals allow for sharp shifts and quality on/off reliability
  • Time proven design that is simple to maintain
  • Air driven double diaphragm pumps handle large solids and slurries

100-512768 SPECS

  • Pump Type: TRANS-FLO GOLD NT100
  • Brand: NOMAD®
  • Wetted Parts: Ductile Iron
  • Non-Wetted Material:
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Brass
  • Air Inlet Connection Type:
  • Ball Material:
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material:
  • Displacement per Stroke (gal): 1.22
  • Elastomers:
  • Fittings: Clamped
  • Inlet Size: 4
  • Discharge Pressure: 120
  • Inlet Connection Type: Flanged
  • Max Flow Rate (GPM): 275
  • Max Delivered Pressure: 120
  • Max Solids Size: 1.375
  • Model #: NT100/WWPB/PU/PU/PU/FL/C
  • Outlet Size: 4
  • Main Material: Ductile Iron
  • Outlet Connection Type: Flanged
  • Porting Position: Center Ported
  • Valve Balls Material:
  • Max Discharge Pressure: 120
  • Valve Seat Material:
  • Valve Seat O-Ring:
  • Shipping Weight LBS: 500.00
  • Shipping Length IN: 37.40
  • Shipping Width IN: 16.70
  • Shipping Height IN: 32.50
  • SKU: NM100512768SP
  • Seal Material:
  • MPN: 100-512768
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
