SuperKlean® 3600BM-S Ball Valve Hot & Cold Water Mixing Unit, Stainless Steel

Part Number: 3600BM-S

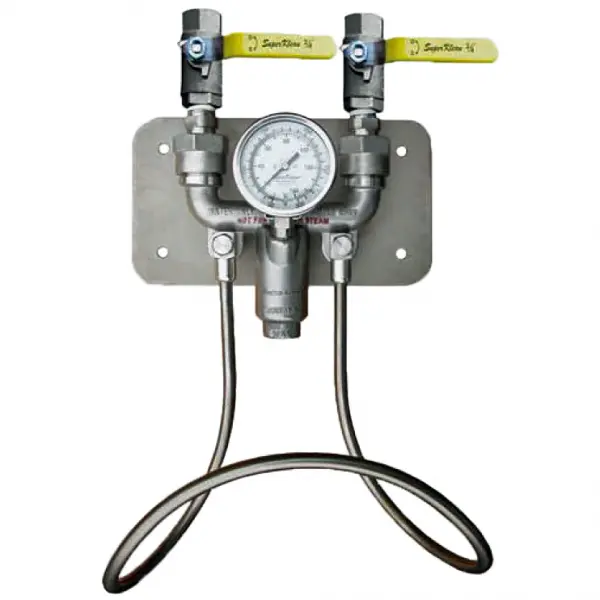

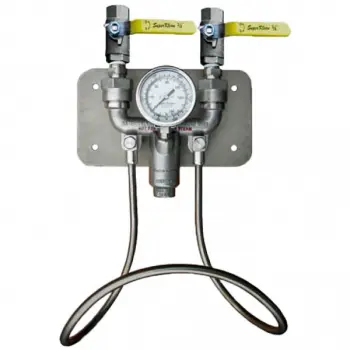

The actual product may vary from images shown
$1,693.42
QTY:


3600BM-S DETAILS

SuperKlean® 3600BM-S Ball Valve Hot & Cold Water Mixing Unit, Stainless Steel

SuperKlean®'s 300 series stainless steel hot &cold water mixing unit was specifically designed for thoroughly blending hot and cold water instantly by mixing supplied hot water with cold water to achieve required temperature output. The unit uses "Y" style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean®'s inlet center lines have the same dimensions almost of our competitors' units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet.

Includes:

  • (2) Ball valves
  • (2) Check valves
  • (1) Hose rack
  • (1) Mounting bracket

3600BM-S FEATURES

  • High quality 300 series stainless steel construction for years of dependable service
  • Thoroughly blends hot and cold water instantly to achieve desired temperature output
  • Y style body mechanics with lift check valves and ball joint unions for flexibility during installation
  • Comes with mounting plate with spacers to allow easy cleaning between unit and wall
  • Included hose rack will hold large lengths of hose
  • Optional temperature gauge may be added for convenience (SKU # SK10SP)
  • Unit features SuperKlean ball valves for easy adjustment of hot and cold water flows
  • 3/4" Female NPT inlets and outlet

3600BM-S SPECS

  • Part Type: Accessory
  • Brand: SUPERKLEAN®
  • Part Sub-Type:
  • Main Material: SS
  • Check Valve: 2
  • Connection Size: 0.75
  • Globe Valve:
  • Globe Valve Material:
  • Hose Rack: Yes
  • Max Pressure:
  • Mixer Body: SS
  • Working Water Pressure:
  • Shipping Weight LBS: 13.00
  • Shipping Length IN: 24.00
  • Shipping Width IN: 24.00
  • Shipping Height IN: 12.00
  • SKU: SK3600BMSSP
  • MPN: 3600BM-S
  • Customs Code:
