FLUX® 10-43060110 BARREL PUMP F430PVDF 40/33 39"

Part Number: 10-43060110

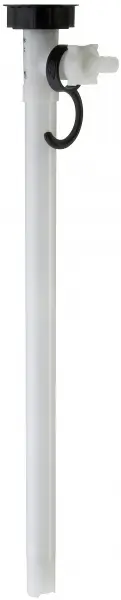

The actual product may vary from images shown
$1,243.00
QTY:


10-43060110 DETAILS

FLUX® 10-430 60 110 BARREL PUMP F430PVDF 40/33 39"
Old FLUX® Part Number 430.60.110
FLUX® Alternate Format Part Number 10-43060110

10-43060110 FEATURES
  • Used for chemically aggressive & hardly flammable liquids; acids & alkalis, thin & neutral liquids
  • Drum Pump (tube set) in Polyvinylidene fluoride, thread on outlet, G 1-1/4 A (BSP 1-1/4" male)
  • Sealless, Hastelloy C shaft, ETFE impeller, FKM o-ring; Max temp. 176 F
  • This pump version will achieve a higher delivery rate!
  • All Flux drum pumps are stripped for cleaning with a minimum of effort

10-43060110 SPECS

  • Part Type: Pump
  • Brand: FLUX®
  • Part Sub-Type: Tubeset with Seals
  • Frequency:
  • Driver Type: Bare Shaft
  • Main Material: PVDF
  • Shipping Weight LBS: 3.75
  • Shipping Length IN: 6.00
  • Shipping Width IN: 3.19
  • Max Discharge Pressure: 18.600000000000001
  • Max GPM: 63
  • Shipping Height IN: 42.50
  • Max Liquid Viscosity:
  • SKU: FX43060110SP
  • Impeller Material:
  • MPN: 10-43060110
  • Outlet Size: 1.25
  • Seal Material: Ceramic oxide, PTFE/carbon Mechanical Seal
  • Type:
  • Customs Code:
