FLUX® 10-42620010 MIXING PUMP F426S 41/38 39"

Part Number: 10-42620010
The actual product may vary from images shown
$1,634.00
QTY:


10-42620010 DETAILS

FLUX® 10-426 20 010 MIXING PUMP F426S 41/38 39"
Old FLUX® Part Number 426.20.010
FLUX® Alternate Format Part Number 10-42620010

10-42620010 FEATURES
  • Stainless Steel 1.4571/316 Ti up to 212F; Certified for use in Zone 0
  • Suitable for highly flammable liquids (up to temperatures of class T4)
  • Also neutral & nonflammable, thin liquids: solvents, org. acids, dilute inorganic acids & alkalis

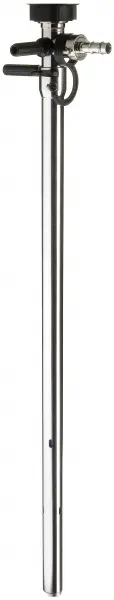

  • Drum Pump (tube set) in Stainless Steel, thread on outlet G 1-1/4 A (BSP 1-1/4" male)
  • Mix fluids inside drums and containers and then pump, or mix & pump at the same time
  • For all other applications both designs F 424 and F 430 are equally suitable

10-42620010 SPECS

  • Part Type: Pump
  • Brand: FLUX®
  • Part Sub-Type: Tubeset with Seals
  • Frequency:
  • Driver Type: Bare Shaft
  • Main Material: 316TiSS
  • Shipping Weight LBS: 8.37
  • Shipping Length IN: 4.38
  • Shipping Width IN: 3.00
  • Max Discharge Pressure: 18.2
  • Max GPM: 63
  • Shipping Height IN: 46.50
  • Max Liquid Viscosity:
  • SKU: FX42620010SP
  • Impeller Material:
  • MPN: 10-42620010
  • Outlet Size: 1.25
  • Seal Material: Ceramic oxide, PTFE/carbon Mechanical Seal
  • Type:
  • Customs Code:
