AMT 4271-95 3 x 2 In 25 HP Straight Centrifugal Pump

Part Number: 4271-95
The actual product may vary from images shown
$6,965.25
QTY:


4271-95 DETAILS

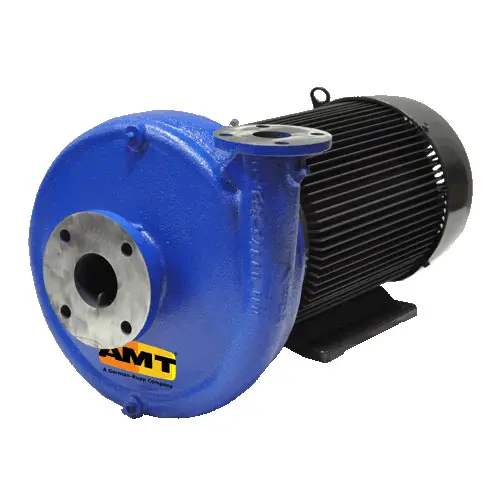

AMT 4271-95 3 x 2 In 25 HP Straight Centrifugal Pump

The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4″ diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure.

Discharge Size / Connection: 2" FNPT
Suction Size / Connection: 3" FNPT
Main Construction Materials: Cast Iron
Solids Handling (In): 0.25
Seal: Viton®/SIL/CAR
Horsepower: 25Type: TEFC
Frame284JM
Phase: 3
VAC/60 Hz: 208-230/460


Replaces No Longer Sold AMT 427A-95

4271-95 FEATURES
  • Cast Iron Construction
  • Silicon Bronze Precision Cast Dynamically Balanced Impeller
  • Viton® Silicon Carbide/Carbon Mechanical Seal
  • Bronze Case Wear Ring
  • 3" x 2" 125 Lb. 4-Bolt Flanged Ports
  • Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping
  • 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring
  • Bronze Shaft Sleeve to Protect Motor Shaft
  • Maximum Casing Pressure 175 PSI
  • Maximum Temperature 200° F
  • Includes Seal Flush/Air Relief Valve
  • Front Drain Plugs
  • TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors

4271-95 SPECS

  • Pump Type:
  • Brand: AMT®
  • Shipping Weight LBS: 525.00
  • Shipping Length IN: 31.70
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 17.00
  • SKU: AT427195SP
  • Engine Type:
  • MPN: 4271-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code:
  • Driver Type:
  • Shipping Width IN: 23.00
  • Outlet Size: 2
  • Inlet Size: 3
  • Elastomers:
  • Motor Frame: 284JM
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.25
  • Porting Position:
  • Max FLow Rate:
  • Power: 25
  • Run Time:
  • RPM:
  • Seal Material:
  • Max Discharge Pressure:
